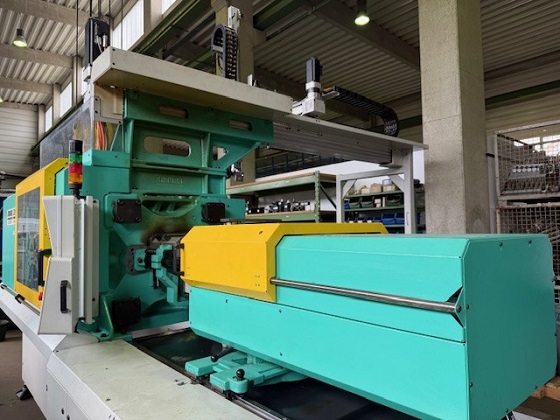

Arburg 520 A 2000-400 Alldrive inkl. Multilift, 2006 (Electric)
Product information "Arburg 520 A 2000-400 Alldrive inkl. Multilift, 2006 (Electric)"
terms of delivery: FCA Pegnitz
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Arburg |
|---|---|
| 02-type: | A520 A 2000-400 Alldrive |
| 03-year of construction: | 2006 |
| 04-condition: | aus laufender Produktion / out of running production |

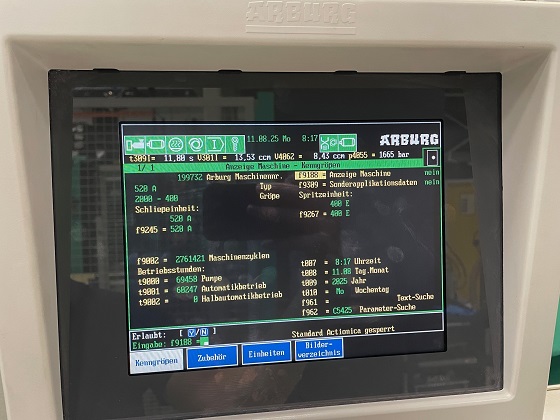

| 05-operating hours: | ca. 60.000 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 200 t |
| 12-opening path: | 450 mm |
| 13-mould installation height min: | 250 mm |
| 14-mould installation height max.: | 550 mm |
| 15-tie bar distance (h x v): | 520 x 520 mm |

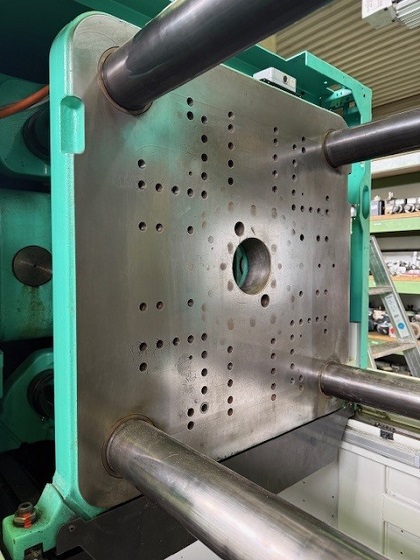

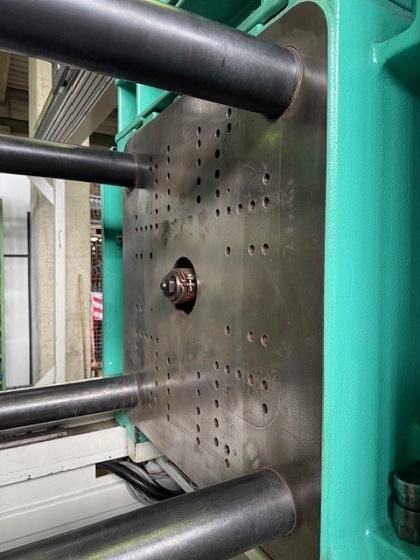

| 16-plate dimension (h x v): | 695 x 695 mm |
| 17-centering (fix- movingplate): | 125/125 mm |
| 20-INJECTION UNIT: | IU400 |
| 21-screw diameter: | 35 mm |
| 22-injection weight in polystyrol: | 141 g |
| 23-stroke volume: | 154 cm³ |
| 24-injection pressure: | 2.500 bar |
| 30-CONTROL: | Selogica |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | Auftragsspezifkation / Specification of Order |
| 41-core pulls: | 3 |
| 42-air valves: | 3/2 |
| 43-hot runner control devices : | 6 |
| 44-robot interface: | Multilift H, integriert |

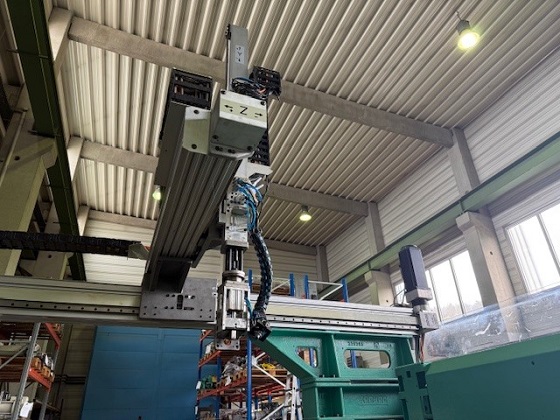

| 45-other equipment : | Multilift 15V (Z:2800mm/X:900mm/Y:800mm/C:0°/90°/B:270°/Vakuum $/Pneumatik 2), Schutzzaun |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 19,9 kW |
| 52-pump drive power: | entfällt |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 9.500 kg |
| 55-total size L x B x H: | 6,04 x 1,6 x 2,2 m |
