Arburg 630 A 2500-1300 Alldrive, 2017
Product information "Arburg 630 A 2500-1300 Alldrive, 2017"
terms of delivery: FCA Pegnitz
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Arburg |
|---|---|
| 02-type: | 630 A 2500-1300 Alldrive |
| 03-year of construction: | 2017 |
| 05-operating hours: | ca. 22.900 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 250 t |
| 12-opening path: | 550 mm |
| 13-mould installation height min: | 300 mm |
| 14-mould installation height max.: | 750 mm |
| 15-tie bar distance (h x v): | 630 x 630 mm |

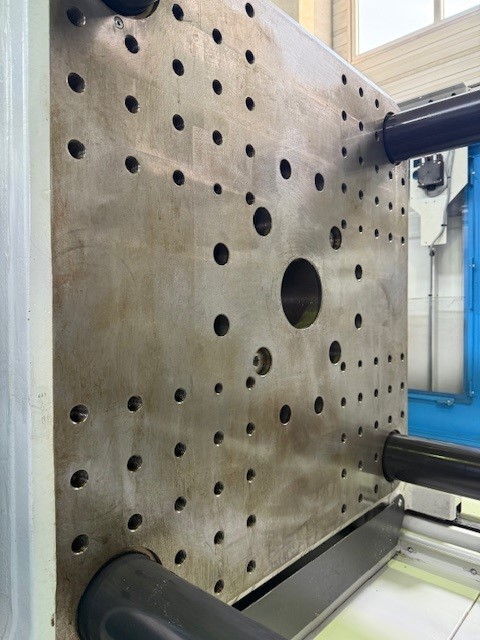

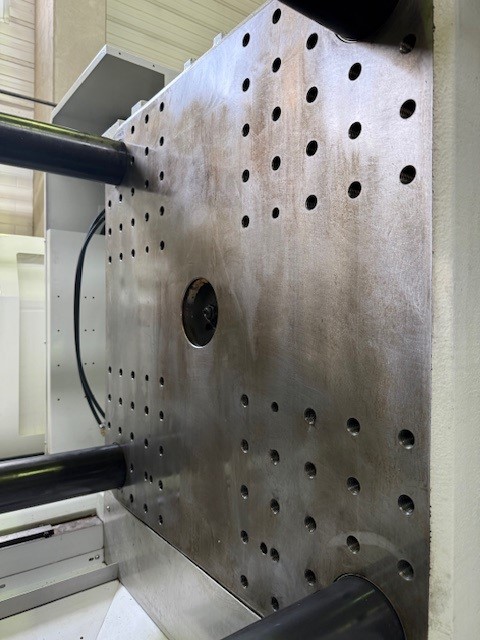

| 16-plate dimension (h x v): | 900 x 900 mm |
| 17-centering (fix- movingplate): | 125/125 mm |
| 20-INJECTION UNIT: | IU1300 |
| 21-screw diameter: | 55 mm |
| 22-injection weight in polystyrol: | 521 g |
| 23-stroke volume: | 570 cm³ |
| 24-injection pressure: | 2.470 bar |
| 30-CONTROL: | Selogica direct |
| 31-screen language: | DE |
| 32-operating manuel: | DE |

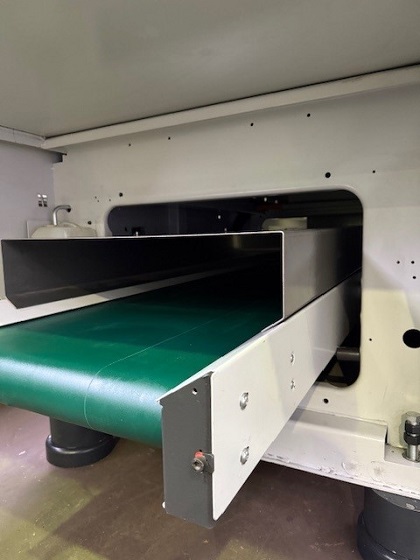

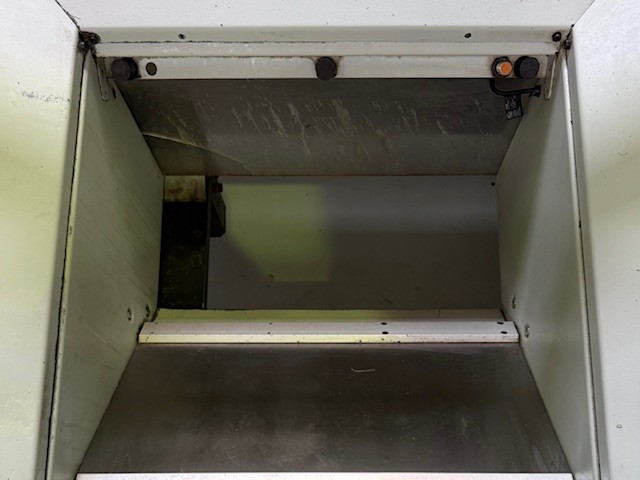

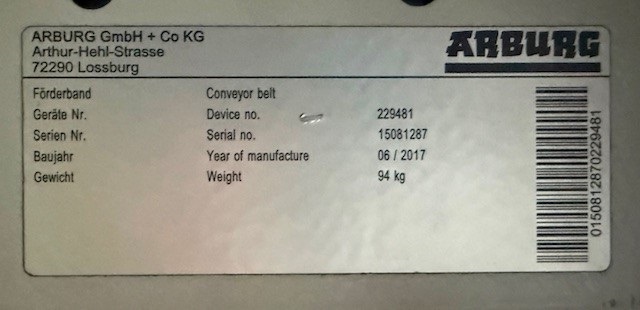

| 40-EQUIPMENT: | Selektierweiche 500x500, Förderband / Separator 500x500, conveyor belt |
| 41-core pulls: | 1 |
| 42-air valves: | 3/2 |
| 43-hot runner control devices : | 12 |
| 44-robot interface: | Euromap 67 |
| 45-other equipment : | Schnittstelle: Leitrechner OPC-UA + Temp.gerät (20mA) / Interface: master computer. OPC-UA, temperature control unit (20mA) |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 30,9 kW |
| 52-pump drive power: | entfällt |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 14.500 kg |
| 55-total size L x B x H: | 6,7 x 2,1 x 2,3 m |
