Arburg 720 A 3200-400 Alldrive, 02/2012
Product information "Arburg 720 A 3200-400 Alldrive, 02/2012"
terms of delivery: FCA Pegnitz
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Arburg |
|---|---|
| 02-type: | A720 A 3200-400 Alldrive |
| 03-year of construction: | 2012 |
| 04-condition: | technisch überarbeitet |
| 05-operating hours: | ca. 69.990 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 320 t |
| 12-opening path: | 600 mm |
| 13-mould installation height min: | 300 mm |
| 14-mould installation height max.: | 800 mm |
| 15-tie bar distance (h x v): | 720 x 720 mm |

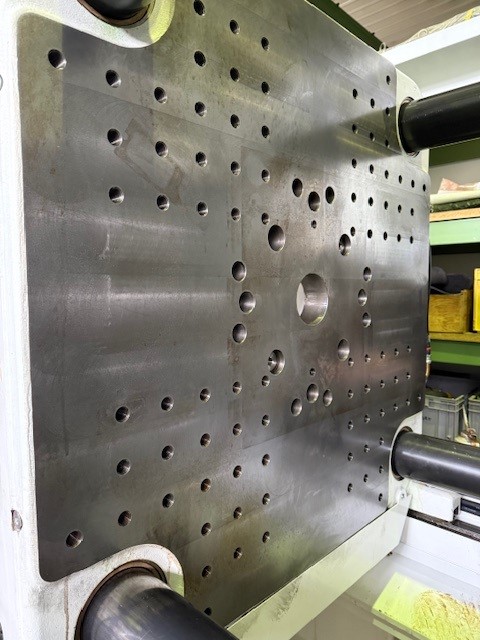

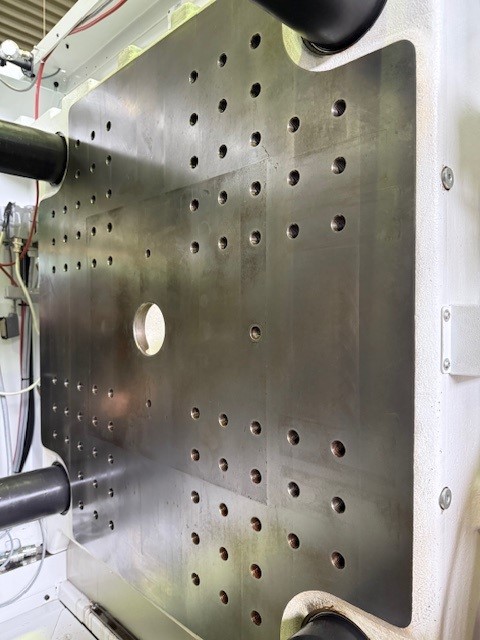

| 16-plate dimension (h x v): | 1040 x 1040 mm |
| 17-centering (fix- movingplate): | 100/100 mm Sonderausführung / special configuration |
| 20-INJECTION UNIT: | IU400 |
| 21-screw diameter: | 35 mm / 50 mm |
| 22-injection weight in polystyrol: | 141 g / 287 g |
| 23-stroke volume: | 154 cm³ / 314 cm³ |
| 24-injection pressure: | 2.500 bar / 1.280 bar |
| 30-CONTROL: | Selogica |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | 50mm Einheit optional! PLV Nachverdichter für Druckluft oder Stickstoff. / 50mm unit optional! PLV booster compressors for compressed air or nitrogen. |
| 41-core pulls: | 2 |
| 42-air valves: | _ |
| 43-hot runner control devices : | __ |
| 44-robot interface: | Euromap 67 |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 12,0 kW |
| 52-pump drive power: | entfällt |
| 53-total installed power: | 61,0 kW |
| 54-total weight: | 14.500 kg |
| 55-total size L x B x H: | 6,5 x 2,1 x 2,2 m |
