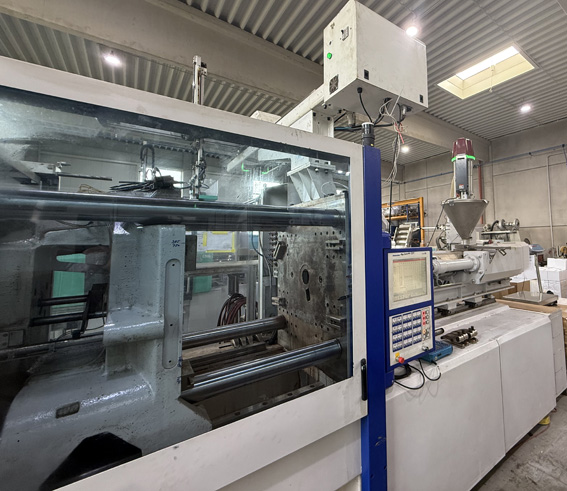

Battenfeld TM Xpress 2700/1350, 2014
Product information "Battenfeld TM Xpress 2700/1350, 2014"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Battenfeld |
|---|---|
| 02-type: | TM Xpress 2700/1350 |
| 03-year of construction: | 2014 |
| 04-condition: | aus laufender Produktion |
| 05-operating hours: | ca. 35.000 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 270 t |
| 12-opening path: | 600 mm |
| 13-mould installation height min: | 250 mm |
| 14-mould installation height max.: | 650 mm |
| 15-tie bar distance (h x v): | 630 x 630 mm |
| 16-plate dimension (h x v): | 940 x 1020 mm |
| 17-centering (fix- movingplate): | - |
| 20-INJECTION UNIT: | IU1350 |
| 21-screw diameter: | 55 mm |
| 22-injection weight in polystyrol: | 588 g |
| 23-stroke volume: | 653 cm³ |
| 24-injection pressure: | 2.041 bar |
| 30-CONTROL: | Unilog B6 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 42-air valves: | 6 |
| 43-hot runner control devices : | - |
| 44-robot interface: | Euromap 67 |

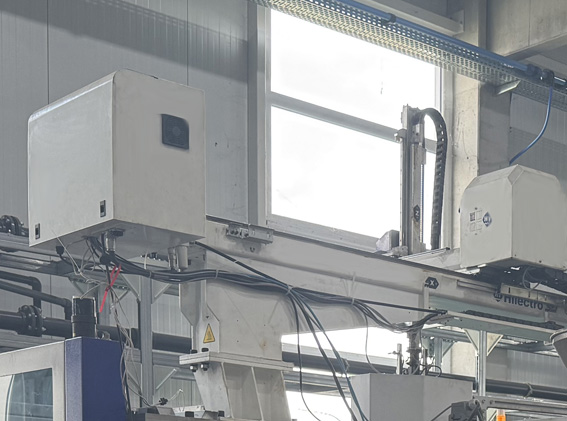

| 45-other equipment : | Robot auf Anfrage / Robot on request |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | - |
| 52-pump drive power: | 55,0 kW |
| 53-total installed power: | - |
| 54-total weight: | 12.500 kg |
| 55-total size L x B x H: | 7,20 x 2,1 x 2,34 m |
