Engel e-motion 310/160 T, 2019
Product information "Engel e-motion 310/160 T, 2019"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Engel |
|---|---|
| 02-type: | e-motion 310/160 T |
| 03-year of construction: | 2019 |
| 04-condition: | aus laufender Produktion / out of running production |
| 05-operating hours: | ca. 11.400 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 160 t |
| 12-opening path: | 460 mm |
| 13-mould installation height min: | 250 mm |
| 14-mould installation height max.: | 600 mm |
| 15-tie bar distance (h x v): | 510 x 510 mm |

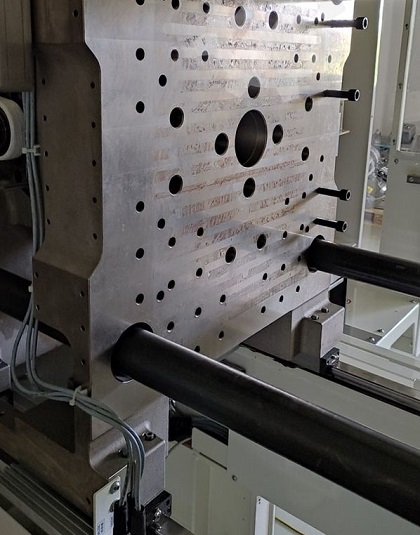

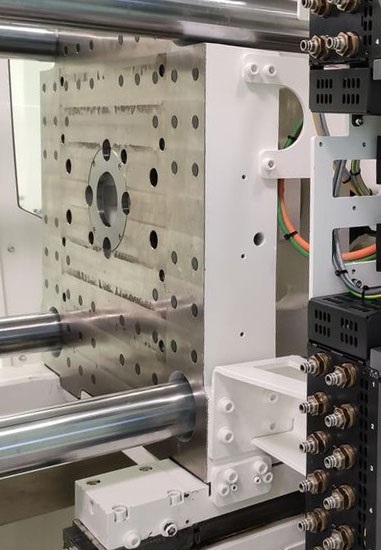

| 16-plate dimension (h x v): | 760 x 760 mm |
| 17-centering (fix- movingplate): | 125/125 mm |
| 20-INJECTION UNIT: | IU310 |
| 21-screw diameter: | 30 mm |
| 22-injection weight in polystyrol: | 103 g |
| 23-stroke volume: | 113 cm³ |
| 24-injection pressure: | 2.400 bar |
| 30-CONTROL: | CC300 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | Barriere mit Homogenisierung und Mischkopf / barrier with homogenisation and mixing head |
| 42-air valves: | - |
| 43-hot runner control devices : | Schnittstelle für Heißkanlregelgerät |
| 44-robot interface: | Euromap 67 |
| 45-other equipment : | Siehe Auftragsbestätigung, Reinraumausrüstung / See order confirmation, cleanroom equipment |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 9,2 kW |
| 52-pump drive power: | 21,0 kW (Auswerfer, Einspritzen, Düsenanlage) |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 8.400 kg |
| 55-total size L x B x H: | 5,2 x 1,7 x 2,3 m |
| 510 x 510mm: | holmlos |
