Engel e-victory /740/400 + easix KR10 Agilus, 2020
Product information "Engel e-victory /740/400 + easix KR10 Agilus, 2020"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Engel |
|---|---|
| 02-type: | e-victory /740/400 + easix KR10 Agilus |
| 03-year of construction: | 2020 |
| 05-operating hours: | ca. 5.400 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 400 t |
| 12-opening path: | 1000 mm |
| 13-mould installation height min: | 450 mm |
| 14-mould installation height max.: | 1000 mm |
| 15-tie bar distance (h x v): | holmlos |
| 16-plate dimension (h x v): | 1200 x 1100 mm |
| 17-centering (fix- movingplate): | 160 mm |
| 20-INJECTION UNIT: | IU740 |
| 21-screw diameter: | 55 mm |
| 22-injection weight in polystyrol: | 518 g |
| 23-stroke volume: | 475 cm³ |
| 24-injection pressure: | 1.650 bar |
| 30-CONTROL: | CC300 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 42-air valves: | 1 |

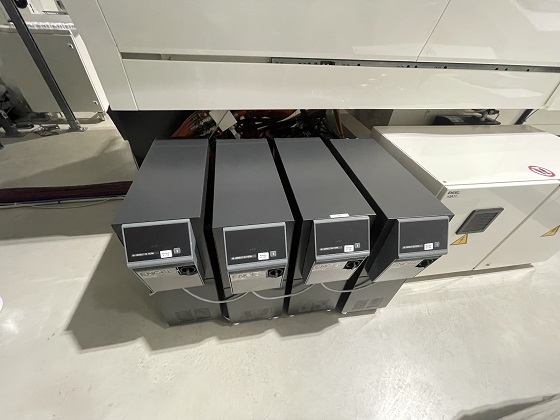

| 43-hot runner control devices : | 24 |
| 44-robot interface: | ER-IS für Engel Roboter |
| 45-other equipment : | Siehe Auftragsbestätigung, Reinraumausrüstung / See order confirmation, cleanroom equipment |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 21,2 kW |
| 52-pump drive power: | entfällt |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 24.500 kg |
| 55-total size L x B x H: | 7,5 x 2,3 x 2,4 m |
