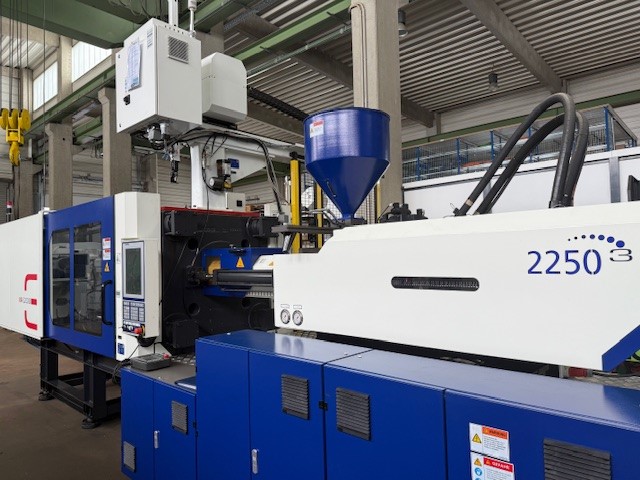

Haitian MA 3200 III 2250, Hilector V-1000IS, 2022
Product information "Haitian MA 3200 III 2250, Hilector V-1000IS, 2022"
terms of delivery: FCA Pegnitz
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Haitian |
|---|---|
| 02-type: | MA 3200 III 2250, V-IS1000 |
| 03-year of construction: | 2022 |
| 04-condition: | aus laufender Produktion |

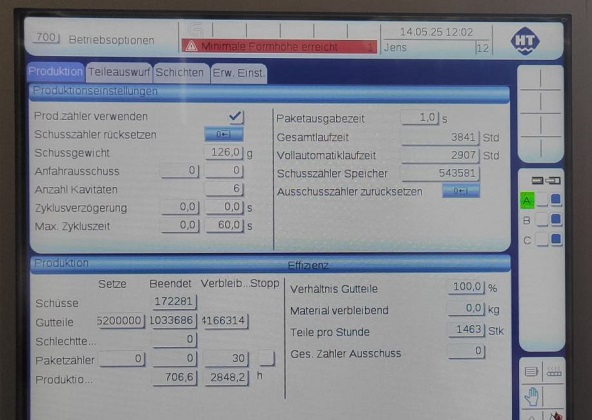

| 05-operating hours: | 2.907 |

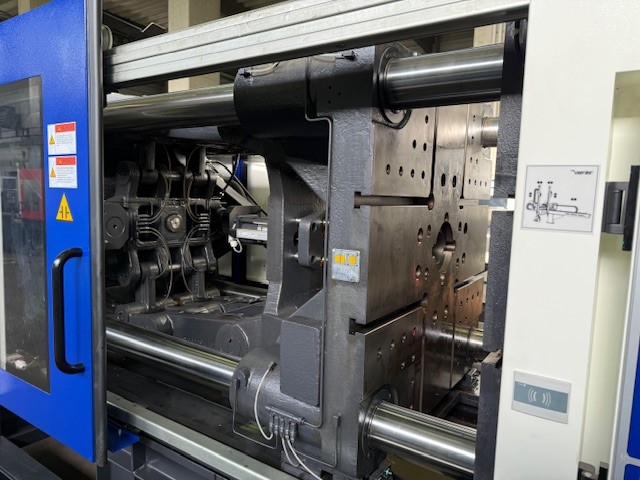

| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 320 t |
| 12-opening path: | 640 mm |
| 13-mould installation height min: | 250 mm |
| 14-mould installation height max.: | 680 |
| 15-tie bar distance (h x v): | 680 x 680 mm |

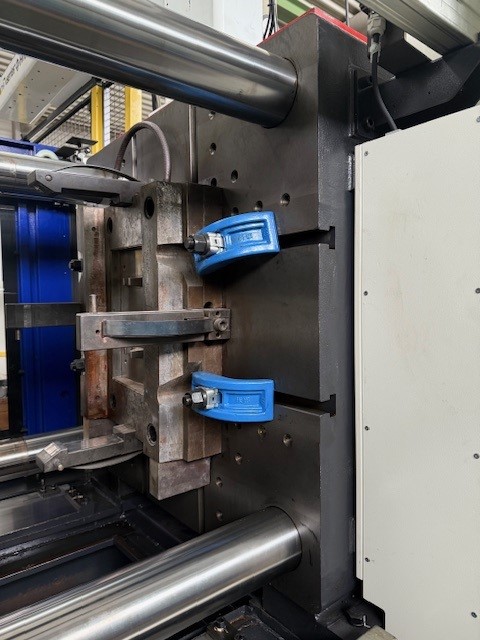

| 16-plate dimension (h x v): | 990 x 990 mm |
| 17-centering (fix- movingplate): | 200/200 mm |
| 20-INJECTION UNIT: | IU2250 |
| 21-screw diameter: | 65 mm |
| 22-injection weight in polystyrol: | 972 g |
| 23-stroke volume: | 1.068 cm³ |
| 24-injection pressure: | 2.120 bar |
| 30-CONTROL: | ABF0100-KEBA2985, 15" |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | Dosierschnittstelle, Schnittstelle für: Auswerferplattensicherung, PSG Heißkanlgerät, Steckdosenbox CE, / Dosing interface, interface for: Ejector plate safety device, PSG hot runner, CE socket box |
| 41-core pulls: | - |
| 42-air valves: | 2, 3/2 Wegeventil / One-way valve FESTO 10mm FWAP |
| 43-hot runner control devices : | Schnittstelle PSG / PSG interface |
| 44-robot interface: | Euromap 67 |

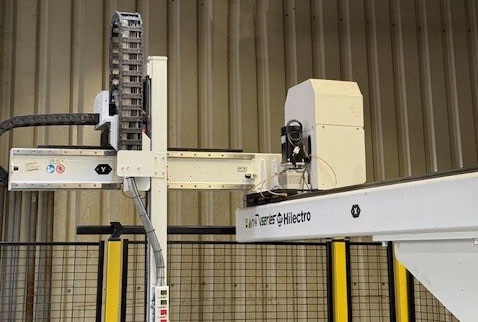

| 45-other equipment : | inkl. Hilectro Robot V-1000IS, pneumatisch / pneumatic (x-790, y-1.000, z-2.750mm) |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 33,0 kW |
| 52-pump drive power: | 45 kW |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 14.000 kg |
| 55-total size L x B x H: | 8,0 x 1,9 x 2,4 m |
