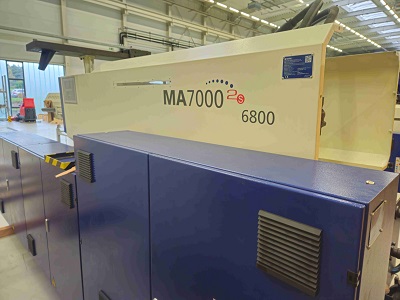

Haitian MARS 7000IIS 6800, 2019
Product information "Haitian MARS 7000IIS 6800, 2019"
terms of delivery: EXW (ex Works)
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Haitian |
|---|---|
| 02-type: | MARS 7000IIS 6800 |
| 03-year of construction: | 2019 |

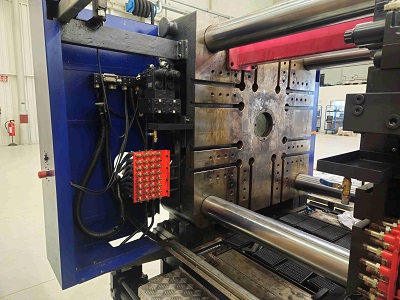

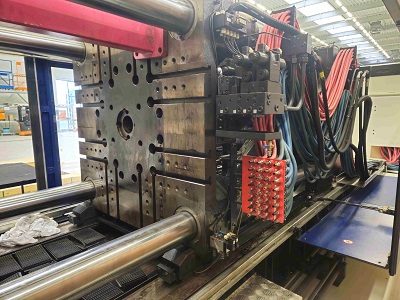

| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 700 t |
| 12-opening path: | 970 mm |
| 13-mould installation height min: | 400 mm |
| 14-mould installation height max.: | 940 mm |
| 15-tie bar distance (h x v): | 960 x 940 mm |
| 16-plate dimension (h x v): | 1405 x 1385 mm |
| 17-centering (fix- movingplate): | 200 |

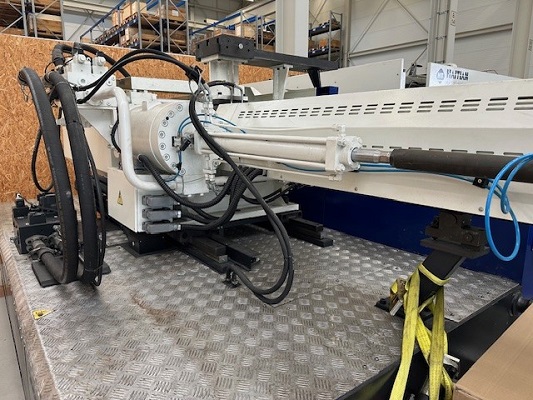

| 20-INJECTION UNIT: | IU6800 |
| 21-screw diameter: | 100 mm (Mischteilschnecke) |
| 22-injection weight in polystyrol: | 3359 g |
| 23-stroke volume: | 3691 cm³ |
| 24-injection pressure: | 1780 bar |
| 30-CONTROL: | KEBA 2880 |
| 31-screen language: | DE / EN |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | - |
| 41-core pulls: | 4 |
| 42-air valves: | 2x |
| 43-hot runner control devices : | 12 |
| 44-robot interface: | Euromap 67 |
| 45-other equipment : | Mischteilschnecke/mixing screw L/D24, Servo-Pumpenantrieb/servo-pump |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 75,55 kW |
| 52-pump drive power: | 22 + 55 kW |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 34.000 kg |
| 55-total size L x B x H: | 10,9 x 3,1 x 2,85 m |
