Krauss Maffei KM160-750CX, 2008
Product information "Krauss Maffei KM160-750CX, 2008"
terms of delivery: FCA Pegnitz
delivery time: on request
terms of payment: 100% prior to delivery
| 01-manufacturer: | Krauss Maffei |
|---|---|
| 02-type: | KM160-750CX |
| 03-year of construction: | 2008 |
| 04-condition: | überarbeitet |
| 05-operating hours: | ca. 37.200 |
| 10-CLAMPING UNIT: | - |
| 11-clamping force: | 160 t |
| 12-opening path: | 650 mm |
| 13-mould installation height min: | 300 |
| 14-mould installation height max.: | - |
| 15-tie bar distance (h x v): | 520 x 520 mm |
| 16-plate dimension (h x v): | 820 x 845 mm |
| 17-centering (fix- movingplate): | 160 / 160 mm |
| 20-INJECTION UNIT: | IU750 |
| 21-screw diameter: | 40 mm |
| 22-injection weight in polystyrol: | 228 g |
| 23-stroke volume: | 251 cm³ |
| 24-injection pressure: | 2.500 bar |

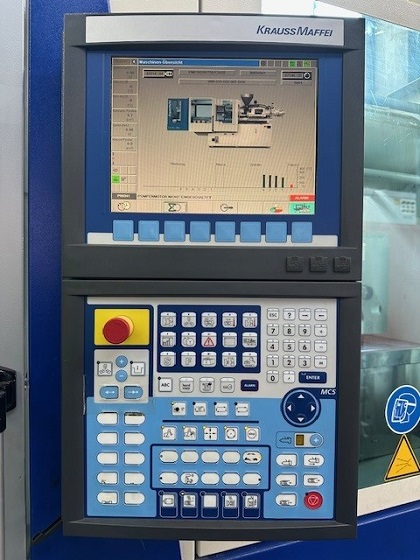

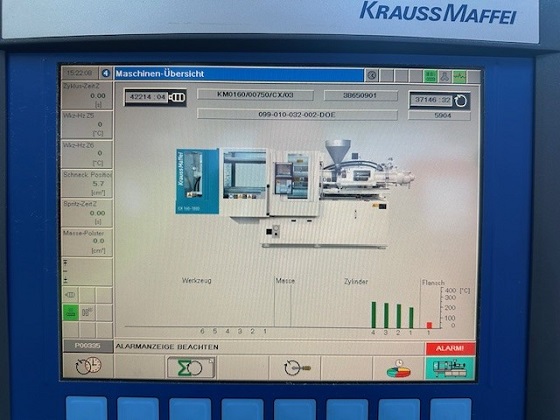

| 30-CONTROL: | MC5 |
| 31-screen language: | DE |
| 32-operating manuel: | DE |
| 40-EQUIPMENT: | Schließeinheit komplett neue Dichtungen / Clamping unit completely new seals |
| 41-core pulls: | 2 |
| 42-air valves: | - |
| 43-hot runner control devices : | - |
| 44-robot interface: | LRX100 integriert, x-550mm, y-1.200mm, z-1.500mm, c-90°, 2xGreifer, 2xVakuum, |
| 50-GENERAL DATA: | - |
| 51-installed heating capacity: | 15,7 kW |
| 52-pump drive power: | 22 kW |
| 53-total installed power: | Motor + Heizung |
| 54-total weight: | 8.200 kg |
| 55-total size L x B x H: | 5,0 x 1,7 x 2,2 m |
